PLAN HP-KL-16501590 Square Feet 3 Bedroom House at 6 Cent Plot
House Plan3 BHKKerala ModernEast Facing

1590 Square Feet 3 Bedroom House at 6 Cent Plot

1590 SQUARE FEET 3 BEDROOM HOUSE You want unique ? Then you can have this an absolutely stunning elevation of a contemporary house design. Both the floors covers an area of a 1590 square feet and accommodate 3 bedrooms along with 3 attached bathrooms and one common toilet. The flat roof is not only designed...

Built-Up Area1,650 Sq FtResidential plan
Bedrooms3 BHKFamily configuration
Est. Budget₹28 LakhsIndicative only
FloorsSingle FloorRoof & structure
Plot Fit5.5 - 7.5 CentsApprox. requirement
OrientationEast FacingAs supplied

Curated Architectural Gallery

Featured Views
ARCHITECTURAL PLAN & SECTION

1590 Square Feet 3 Bedroom House at 6 Cent Plot

Get PDF Drawing
1590 Square Feet 3 Bedroom House at 6 Cent Plot blueprint / featured imageCAD / Floor Plan preview

Detailed Spatial Schedule & Dimensions

Space / RoomDimensionsNotes
Built-up Area1,650 Sq FtKerala Modern
Bedrooms3 BHKResidential configuration
Plot Fit5.5 - 7.5 CentsEast Facing
ARCHITECTURAL DESCRIPTION

Design Overview

1590 SQUARE FEET 3 BEDROOM HOUSE

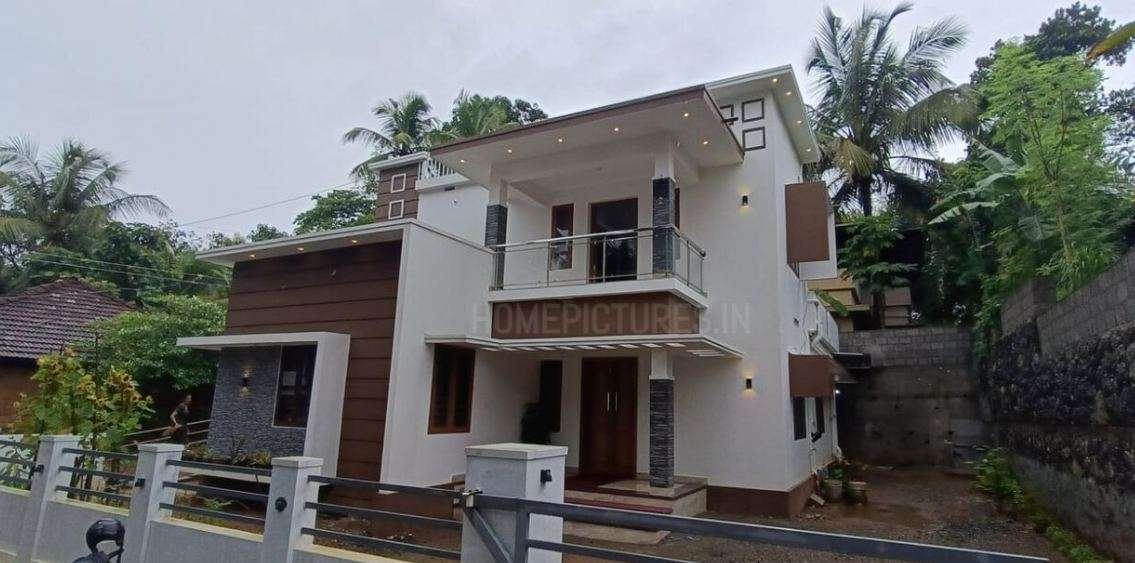

You want unique ? Then you can have this an absolutely stunning elevation of a contemporary house design. Both the floors covers an area of a 1590 square feet and accommodate 3 bedrooms along with 3 attached bathrooms and one common toilet. The flat roof is not only designed to be unique, but also to make the house look all the more modern. The balcony on the first floor is lovely as it seems to be very trendy.

1590 Square Feet 3 Bedroom House at 6 Cent Plot
1590 Square Feet 3 Bedroom House at 6 Cent Plot

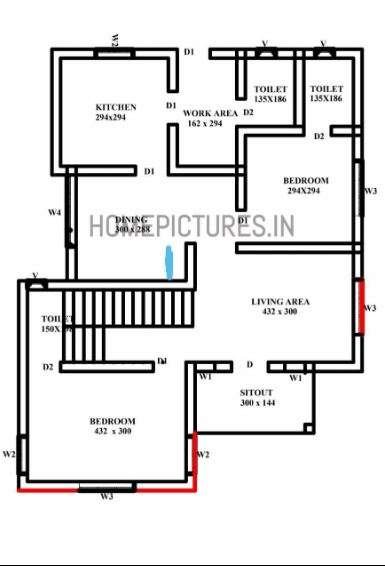

1590 SQUARE FEET GROUND FLOOR PLAN

The unique low roof that slightly juts out ward is undeniably beautiful. This design could also be seen on the external window shades-heightening the distinctive design of this house. Inspired by modern architecture, the house has no visible curves. It not only is budget-friendly, but also pretty lovely for a two-storey house. The ground floor is spread across 1100 square feet and it hosts 2 bedrooms with attached bathrooms. Additionally, there’s a sit out, living room, dining space, kitchen, work area and one common toilet.

1590 Square Feet 3 Bedroom House at 6 Cent Plot
1590 Square Feet 3 Bedroom House at 6 Cent Plot

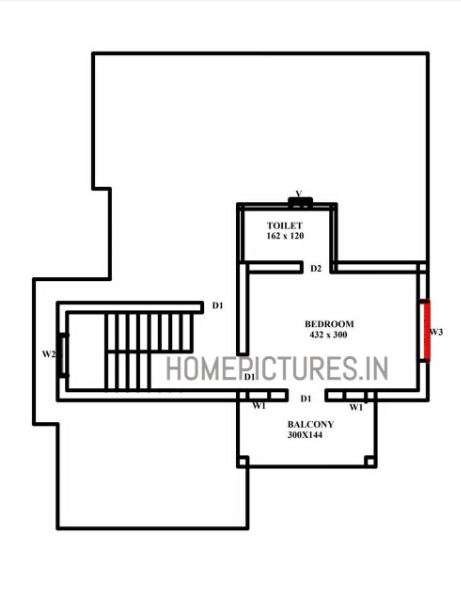

1590 SQUARE FEET FIRST FLOOR PLAN

The fist floor is spread across 490 square feet and it include one bedroom with attached bathroom, small passage, balcony and open terrace. It does not have many fanciful pillars, and the very few present are partially designed with a unique design that could be seen even on the walls next to the main door, and the first floor window. Big and small storage facilities are creatively arranged in attractive color themes in the kitchen. The bedrooms are highlighted in different color themes and gives prime importance to storage facilities as well. The cost of constructing this house is approximately 25 lacks in Indian Rupees.

PROJECT FACT :-

Total Area : 1590 Square Feet

Location ; Wadakanchery, Thrissur

Plot : 6 Cent

Client : Mr. Jithu

Completion of the year : March 2023

Budget : 25 Lacks

Total Cost : 33 Lacks

1590 Square Feet 3 Bedroom House at 6 Cent Plot
1590 Square Feet 3 Bedroom House at 6 Cent Plot





CONSTRUCTION BUDGET

Estimated Construction Cost

₹28 Lakhs

Construction cost is an indicative estimate and can vary with location, material selection, labour rates and finish grade.
